AIR TECH21 is a manufacturer of two-stage electric dust collectors.

Expendable

SPARE PART with Model AT SERIES Electronic

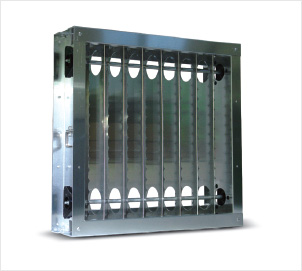

IONIZER (Discharging CELL)

PART NO : AT-I-ST01

There is no concern on breaking of wire because it is SPIKED TYPE not existing WIRE TYPE, and various methods are improved through theory, experiments and technical data to enhance precipitation efficiency. Also, it is designed without any concern on corrosion. In addition, it can be used semi-permanently when maintained appropriately.

Registration of utility model: no. 20-2001-0020218

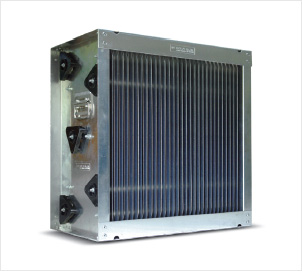

COLLECTING CELL (Precipitation Part)

PART NO : AT-C-ST01

It is the part where ionized pollutants are adsorbed, so length and cross-section of precipitation plate, intervals between precipitation plates, material location of insulators, etc. are optimally designed for various pollutants.

Patent: no. 10-0722863

Usage	Interval	Thickness	P/N
DUST	0.8mm	0.6T	52002-002-1
MIST	0.6mm	0.6T	52002-002-2

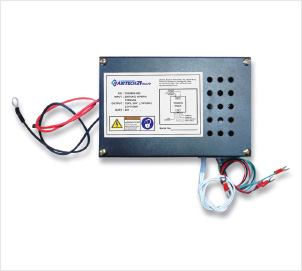

POWER PACK (high voltage part)

PART NO : AT-PP-ST01

POWER PACK contains the function to change 220V alternating current into DC high-voltage (12KVDC) necessary for IONIZER and precipitation part.
For the safety, electric current in a high voltage section is limited to 2mA and maximum to 5mA when substances with low ignition point are inhaled.

Registration of utility model: no. 20-2002-0018927

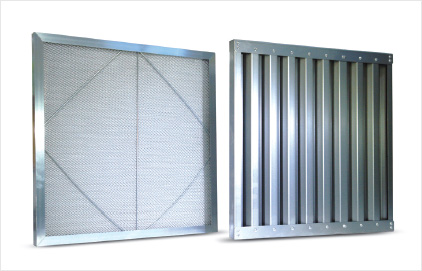

FOOD FILTER & IMPINGER

PART NO : AT-F-ST01

PART NO : AT-IM-ST01

FOOD FILTER – It is optional, and it is installed in the front to precipitate large-volume pollutants.

IMPINGER – It is optional, and it is installed in the front to spread wind evenly.

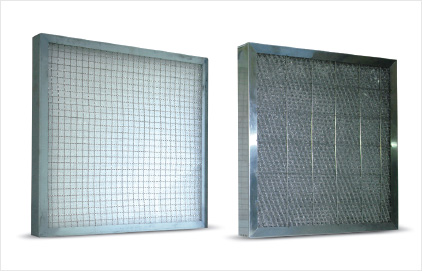

DEMISTER (P/P & SUS)

PART NO : AT-D-ST01

PART NO : AT-D-ST02

DEMISTER is installed in the front of an electrostatic precipitator (IONIZER) acting as PRE-FILTER, and it precipitates relatively large-volume pollutants.

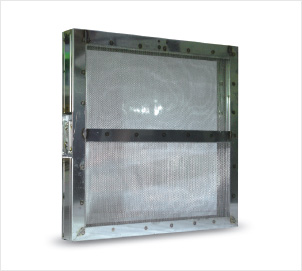

ACTIVE CARBON FILTER

PART NO : AT-AC-ST01

A/C FILTER is optional and the concept of AFTER-FILTER.
It has an excellent effect to remove odor after precipitation, and it is made of ALL SUS materials to improve practicality regarding BOX form and durability.
