Clean Air System
Application Range Of Airtech21 Clean Air System
This SYSTEM can be applied in all workplaces where polluted indoor air due to different reasons needs to be filtered.

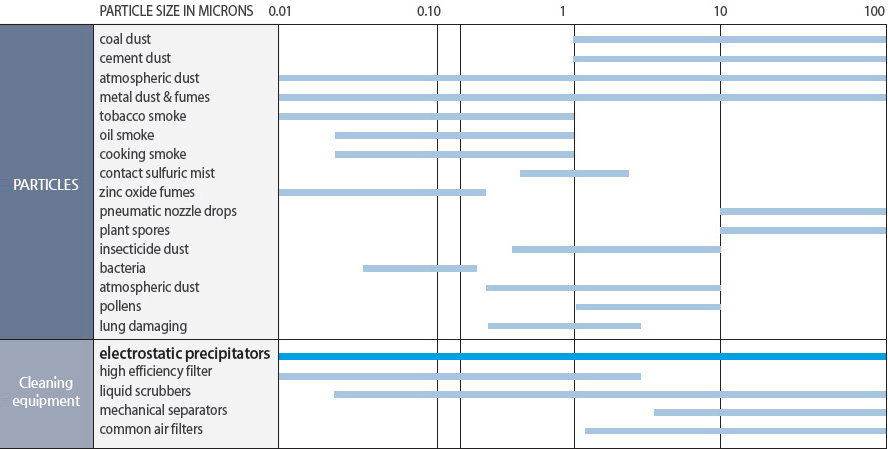

Usually, if particle size is less than 0.01μ, AIRTECH21 CLEAN AIR SYSTEM can be applied effectively, and it can be applied to treat those below.
- Oil Mist / Smoke – BOLT / NUT processing
- NC lathe, NC MILLING, FORMING M/C
- Tobacco Smoke
- CALENDER process, TENTER process
- Poisonous Gas
- Diesel Smoke
- Rubber Dust / Grinding Dust / Plastic Dust
- Other Smell
- Other Smoke / Dust
Characteristics Of ATC Series
|ATC SERISE – ORDER SPECIFICATION||ATC SERISE – BASIC SPECIFICATION|
- New Technology
- Active introduction of developed new technology and new technique
- Customer satisfaction with the excellent quality
- Cost reduction
- Realization of Customer surprise with cost reduction and on-time delivery

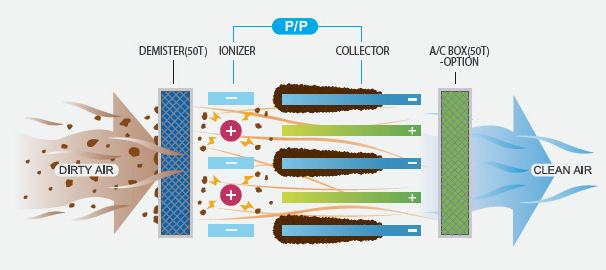

Operation Principles Of Double Step Charging-Type Electrostatic Precipatator
Electrostatic Efficiences And Performance
- AIR VELOCITY (fe/min)
- EFFICIENCY_CURV ES 1,2 and 3
- 1. Overall DOP (Dioctyl phthalate) efficiency using 10 Stage Cascade Impactor.
- 2. ASHRAE Standard 52 Dust Spot Test Method Atmosphere Air.
- 3. 0,3 Micron DOP efficiency using 10 Stage Cascade Impactor.
- PRESSURE DROP ACROSS UNIT_CURV ES 4,5 and 6
- 4. Cell With 40% open perforated plate front and rear.
- 5. Cell with 1″ metal mesh filter front and rear.
- 6. Cell only.
